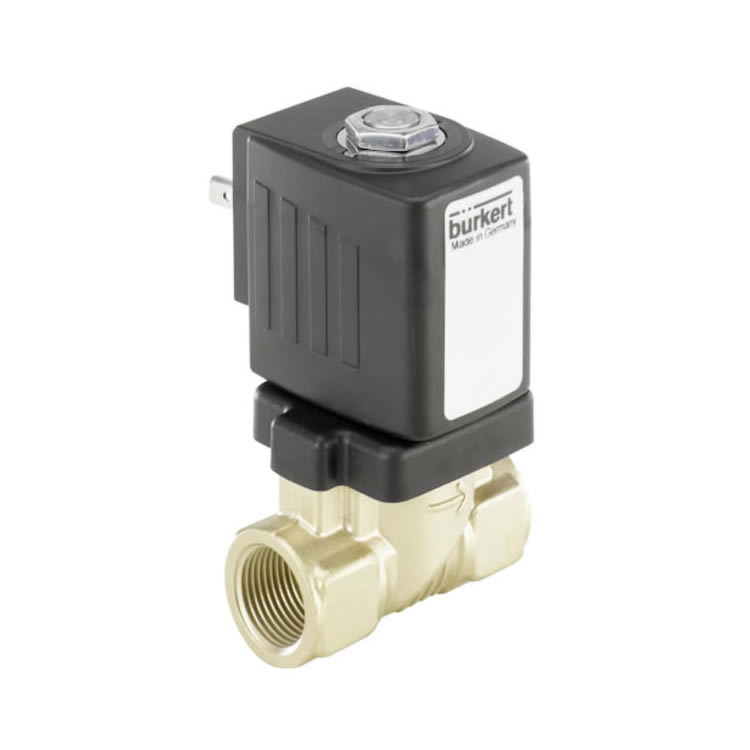

Burkert 6213-20001488 Universal 2-Way Solenoid Valve
Product Description
The 6213 EV valve is a servo-assisted solenoid valve of the S.EV series. The spring coupling of the diaphragm supports the opening process of the valve. In its standard version, the valve is suitable for liquids. A minimum differential pressure is required for full opening. A special version (HP00) for opening the valve without differential pressure is suitable for gas and vacuum applications. Depending on the application, various diaphragm material combinations are available. The standard brass housing meets all European drinking water requirements. Lead-free or dezincified copper-plated types are available for other markets. The housing supply is finished by a stainless steel version. The solenoid coil is molded with chemically resistant epoxy resin. To reduce the energy requirement, all coils can be delivered with electronic power reduction. In combination with a plug in accordance with DIN EN 17301-803 Form A, the valve complies with protection class IP65 - in combination with a stainless steel housing NEMA 4X.
Features
Servo-assisted diaphragm diameters up to DN 40 Spring-coupled diaphragm opens without differential pressure Vibration-proof, helical coil system Wet design enables quiet closing High surface quality of die-cast housing
burkert Universal 2-way solenoid valve 621 Optional accessories
Cable plug A series Model 2508 Timer unit Model 1078
