Delta Mobrey VT00 Level Switch
Measuring principle: Vibrating fork
Process material: 316L stainless steel (1.4404)
Body: 304 stainless steel with polyester label
LED window: Flame-retardant polyamide (Pa12) UL94 V2
Plug: Reinforced polyamide glass
Plug seal: Nitrile rubber
Mounting: 3/4-in. BSPT (R) or NPT
1-in. BSPT (R) or BSPP (G) thread, or
Sanitary 2-in. (51 mm) Tri-Clamp fitting
Hysteresis (water): Nominal ±0.039 in. (±1 mm)
Protection rating: IP66/67 to EN60529
Liquid density: min. 37.5 lb/ft3 (600 kg/m3)
Liquid viscosity range: 0.2 to 10,000 cP (centipoise)
Cable connection: via the supplied 4-way plug (DIN43650)
Wire size: max.15AWG
Poise: 4 positions (90°/180°/270°/360°)
Wire size: max.0.06 in.2 (1.5 mm2)
Cable gland: PG9
Cable diameter: 0.16 to 0.35 in. (4 to 9 mm)
The Mini-Squing is designed on the principle of a tuning fork. A piezoelectric crystal is used to force the tuning fork to oscillate at its fundamental frequency (natural resonance). If the Mini-Squing is mounted as a high level alarm, the forks are free to swing in the air; when your liquid level rises and covers the forks, they are damped - it is this change in frequency that indicates the Mini-Squing has switched. Different electronic outputs are available, which allow you to switch the load on/off or interface directly with a PLC. Mini
Performance Features
Economical 3/4” installation in pipe or tank
For hygienic installation in the food industry
Small fork size to minimize intrusion into container
LED provides status and health information
Protected against reverse polarity and short circuit connections
Continuous operating temperature of 150°C and pressure of 100 bar g
Operating frequency selected to avoid false switching due to equipment vibration
Industry standard plug/socket connection for quick and easy connection
Direct load switching models available for all power supplies: 24 to 264V ac/dc, 50/60Hz.
24V dc solid state PNP output for direct connection to PLC

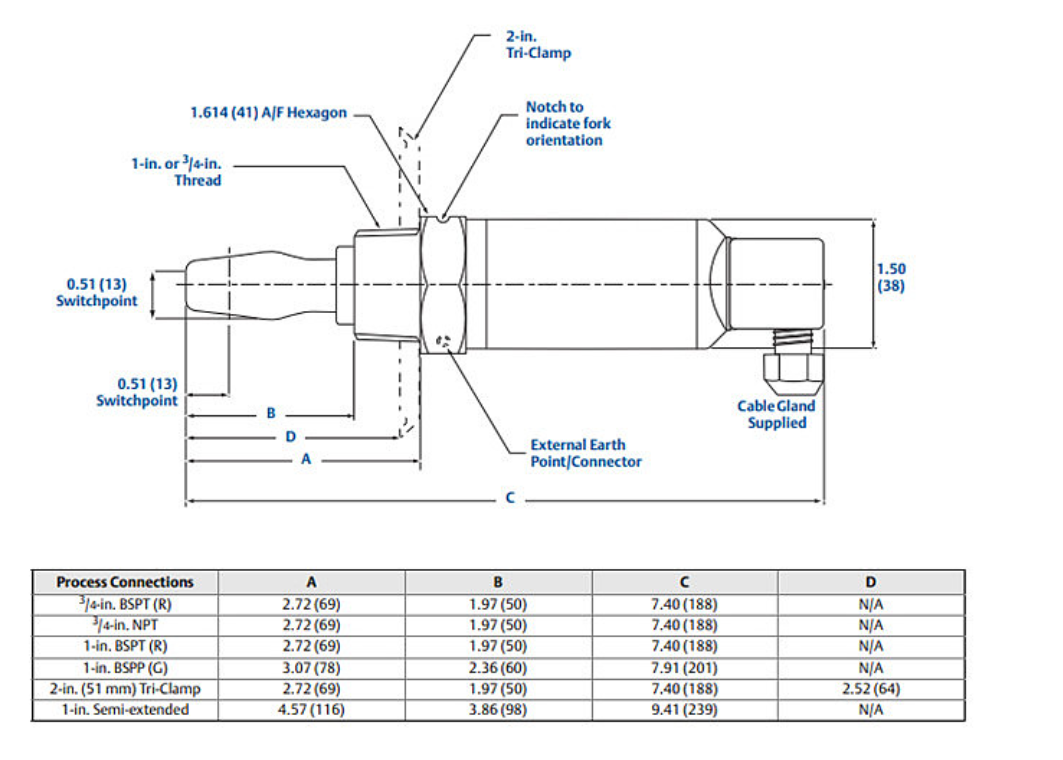

product dimension
