Delta-Mobrey S01DB/F68/1 Magnetic horizontal float switch, tough & dependable for liquid level alarm and pump control, ideal for aggressive environments.
Device Type: Horizontal Float Switch
Mounting Type: Side Mount
Body Material: Aluminium Bronze
Cable Entry: M20 x 1.5-6H thread to BS3643
Operating Temperature: Up to 210°C (410°F)
Operating Pressure: Up to 18 barg (261 psig)
Standards: CE Certified, IEC60529 (IP66)
Country of Origin: United Kingdom

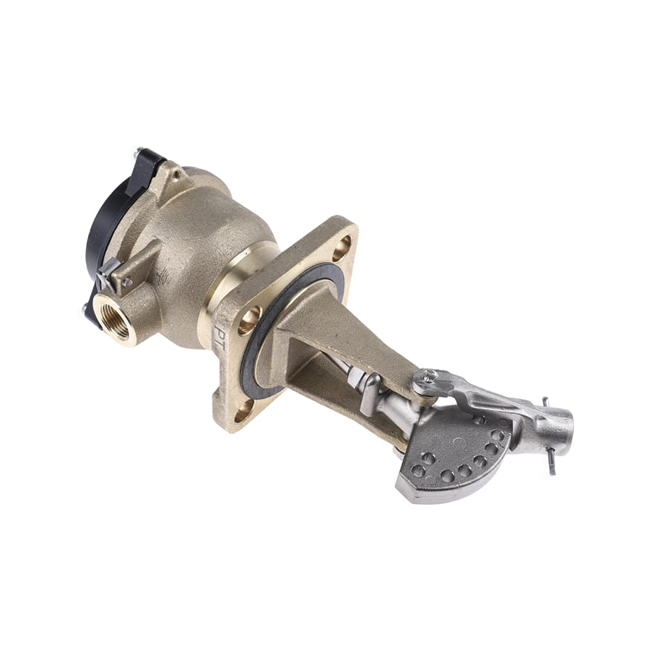

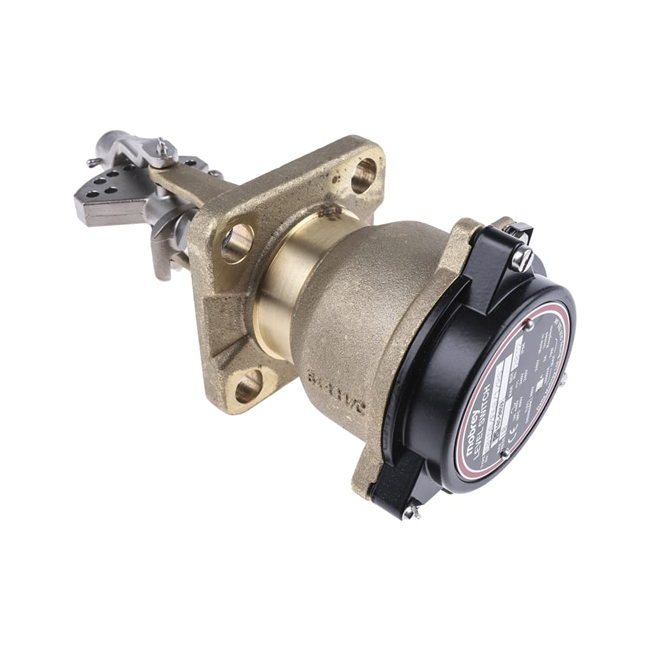

The Delta Mobrey S01DB/F68/1 horizontal float switch consists of one-piece cast aluminium bronze body and 316 stainless steel float with a long straight arm. It is a side mounting magnetically activated liquid level switch. The switch is ideal for use in industrial applications, including pump control and as a low or high-level alarm.
The maximum current is 2A (DC) and 5A (AC)
Tough, rugged design for long life in aggressive environments
Operates in almost any liquid
Variable differential to adjust switching point
Two off independent SPST voltage-free contacts (’snap action’) for alternative make and break circuits
No contact ’hover’ or ’bounce’ for clean make or break
M20 conduit entry with supplied cable gland (cable not supplied)
Switch mechanism electrical with 2 independent single pole single throw (SPST) contact sets
The enclosure is made of aluminium bronze
Float standards is horizontal variable differential for pump control/alarm, 316 SST, minimum SG 0.72, 500 psi (34.5 bar)
OEM product, part number S01DB/F68/1 – direct from the manufacturer Delta Mobrey
Other known references to this product are: RS Stock no 185-9853
Designed and manufactured in the UK.
