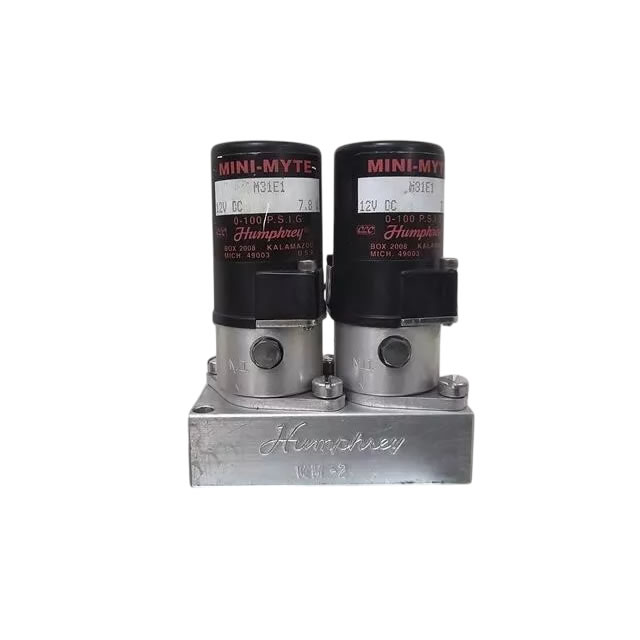

Humphrey M31E1 12VDC Mini Myte Solenoid Valve
This Humphrey solenoid valve is a reliable and efficient choice for any electrical equipment or supply needs. With a 12VDC power supply, it provides a maximum output power of 7.8W, making it suitable for various applications. The valve is designed to operate with high precision and accuracy, ensuring optimal performance. The valve is suitable for use in a wide range of electrical equipment and supplies, including adapters and other electrical devices. It is made from high-quality materials to ensure durability and longevity, and is designed to operate in harsh environments. This Humphrey solenoid valve is a great choice for anyone looking for a reliable and efficient electrical solution.
| Media | Air, Inert Gas |
| Valve Function | Single Solenoid, Multi-purpose |
| Voltage | 12VDC |
| Piping Type | Manifold, Subbase Piping |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Approx Size (in) HxWxD | 2.54 x 1.13 DIA |
| Type of Operation | Direct Acting Type |
| Flow - SCFM @ 100 psig | 6 |
| Flow - LPM @ 6.9 bar | 169.9 |
| ESEOD (orifice) - in (mm) | 0.0623 (1.58) |
| Flow Coefficient (Cv) | 0.07 |
| Lubrication | Not Required |
| Pressure Range (psi) | 0-100 |
| Response Time per Step (ms) | 7/13 |
| Operating Speed (cycles/min) | 300 |
| Ambient Temperature Range (⁰F) | -30~130 |
| Wetted Materials | Anodized Aluminum, Brass, Buna N |
| Weight (oz) | 5.0 |
| Electrical Entry | Conduit & Grommet w/ 12" Leads |
| Voltage Range | +10%, -15% |
| Power Consumption (w) | 7.8 |
| Manual Override | Non-Locking |
