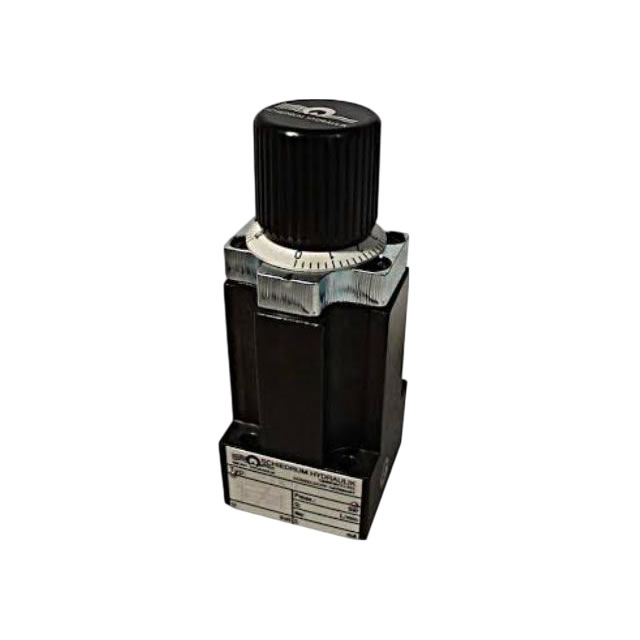

SCHIEDRUM FLOW CONTROL VALVE 20DR 400-4HM40
2-way flow control valves are flow valves (throttle valves) with a built-in pressure compensator.
The valves automatically regulate an adjustable volume flow regardless of pressure changes in the inlet or outlet line.
They can be installed on the inlet or outlet side of the consumer. The orifice-like design of the adjustment throttle ensures that the valve is largely
independent of viscosity.
Description:
2-way flow control valve
rotary knob adjustment angle 300°
plate structure NG 6
hole pattern according to DIN 24 340-G6
7 nominal flow rate ranges 0.4 l/min to 25 l/min
smallest adjustable volume flow approx. 15 cm 3 /min
P max = 315 bar
