Planetary Tube Cutting Machine WT-350
Type: WT-350
Cutting range: 6-90mm
Weight: 15KG
Datasheet:
A proper tube preparation is essential to produce a proper weld.
WTMRO’s orbital cutting machines with stainless steel concentric jaws can prevent the deformation of the tubes during clamping.
The perfect position of the tube guaranty the perpendicularity of the cut when the saw travels around the tube, and the consistency of that perpendicularity cut after cut.
The precision of our cutting machine allows a perfect tube to tube alignment with the smallest gap possible, removing the need to facing the tube again and the waste of tube, therefore saving time and money.
WTMRO’s cutting machines are an indispensable tool for any automatic and orbital welding.
WTMRO offers large orbital cutting range, 5 different models to cut tubes with diameter from 6 to 350 mm!
QUALITY, GEOMETRIC PRECISION
Cutting with no tube deformation (multi-contacts concentric clamping), ideal for thin wall stainless steel tubes.
Great perpendicularity (<0.25 mm) of the cut and superb surface finish (few burrs)
PORTABILITY
With the easy to remove sawing attachment, WTMRO’s cutting machines are easy to transport.
Please do not hesitate to contact us for all inquiries relating to orbital cutting technology.
We are glad to share our decades long experience in orbital cutting and helping you to select the solution that fits your needs.
Technical features:

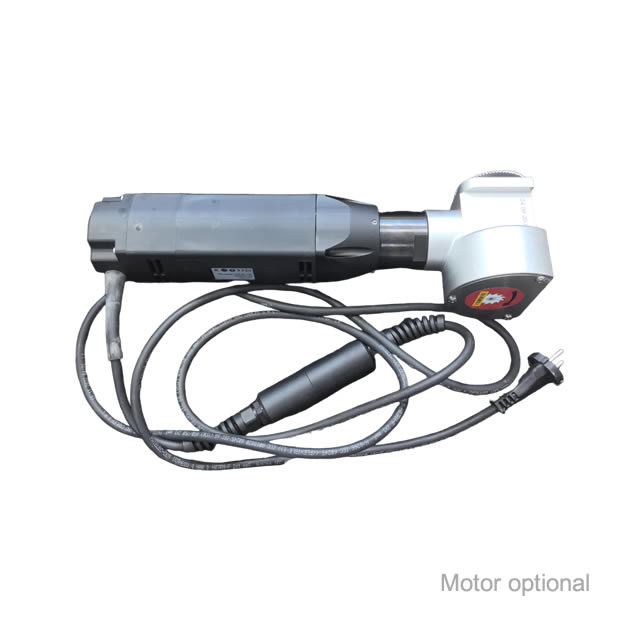

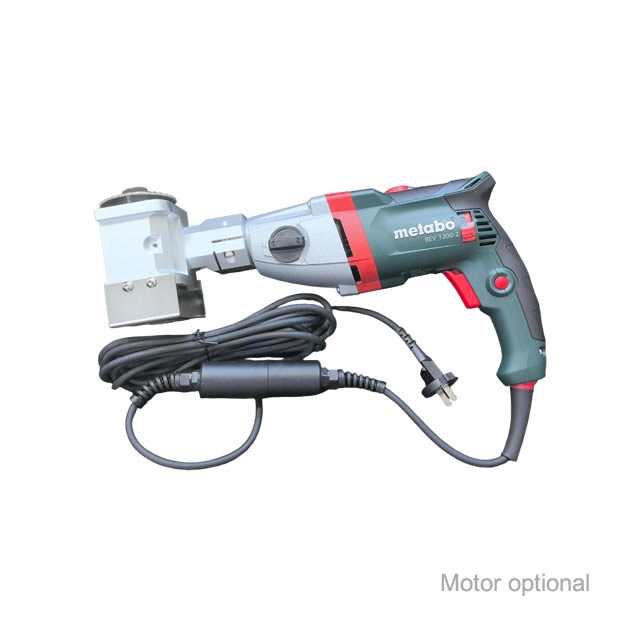

- Fast speed motor:
120V or 230V, 1200W, electronic speed variator with cutting compensator
Vibration level according to EN 28662 norm : <2.5m/s², protection class : IP 20
Rotation speed (6 speed variations): from 95 RPM to 280 RPM
- Robustness:
Very efficient clamping system thanks to a screw without end directly engaged on the clamping jam.
- Easy maintenance and control:
Lubrication of the inner parts with the grease nipples.
All motors are supplied in their own individual cases, including the necessary tools.
