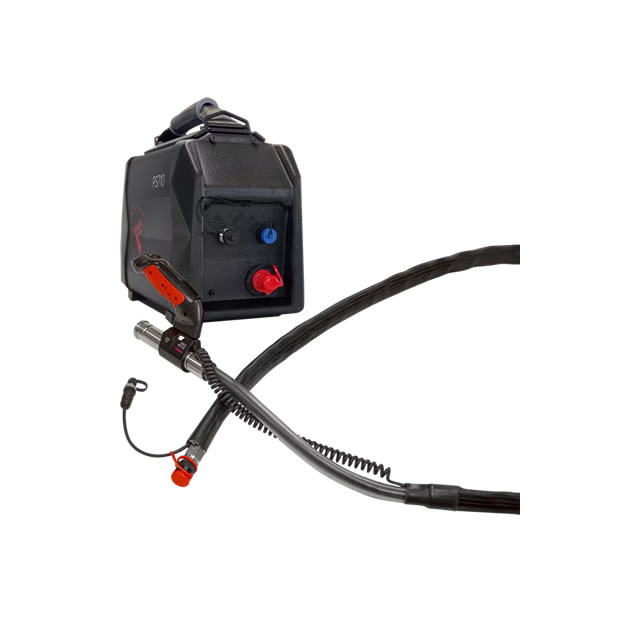

Elpress PS710E Hydraulic Mains/ Battery Powered Pump
Maximum performance, can be used both with 28.8 V Li-ion battery or 110-240 V mains power
LCD Display with keypad for status information of pump
Able to store and document crimps in the control system
PC communication via USB
Used with crimp heads V250, DV250, V1300, V1300C2, DV1300, DV1300C2
Electro-hydraulic pump for the fitter working in the electricity distribution network or industry. NOTE: Power cord and hydraulic hose cpl must be ordered separately.
Elpress PS710 Features:
Possibility to use different working pressures (0-700 bar)
Can be used with a PC on a computer network with a printer (doesn not apply to the PS710R)
Oil flow at 20 bar: 0.6 litres/ min (PS710D 1.2 litres/min)
Oil volume: 1.0 litre
Oil type: HYDREX MV 22 (hydraulic oil, mineral type) or similar
Mains operation 85-276VAC 50-60Hz
Li-ion battery 28.8V, 3.0A
Crimps/ battery charge: 120 crimps with Cu 150mm²
Charger 230VAC 50Hz, 10.8-28.8V, chargin time 65 min
Protection IP54
Ambient temperature -22 to 55°C
CE-approved: Safety of Machine 2006/42/EC, Electro-magnetic compatibility 2014/30/EU, Low voltage directive 2014/35/EU, ROHS 2014/35/EU, WEEE 2012/19/EU
Elpress Mains Powered Pump’s weight is approximately 12,4 kg
Small dimensions 370 x 250 x 160 mm
