EFFBE LM5-42 V2A Machine Support Element
The series LM isolated mechanical vibrations and protects against vibration in general. It covers natural frequencies between 6 und 20 Hz. With the LM series, EFFBE offers the ideal solution for the installation of heavy machinery. Our adjustable feet offer outstanding properties for vibration isolation and vibration decoupling as well as in structure-borne noise insulation and shock absorption applications. Seven available machine foot sizes cover the requirements for the installation of all standard presses, eccentric presses, automatic punching machines, lathes, milling machines and surface grinding machines. Our designers create individual solutions for unusual loads and stroke rates.
Structure of the machine base LM: Elastomer-to-metal bond, compact design, integrated leveling system, 7 sizes in up to 3 shore hardness grades

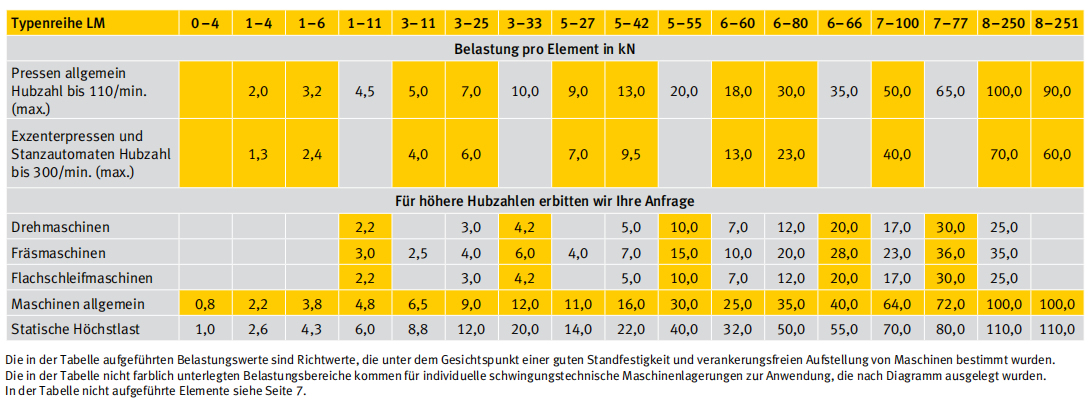

Characteristics of the machine base LM: Vibration isolation, shock isolation, shock absorption, structure-borne noise insulation, anchorage-free installation, load range 0.1 kN daN to 110 kN, natural frequency (static) 6 Hz to 20 Hz, fine thread
Materials: Elastomer body in CR quality with high elasticity, oil and aging-resistant, outer cap made of St W 23 or GG, yellow powder-coated metal surface, pressure plate made of GGG, screw DIN ISO 961 (M1O / M12 DIN 933), quality 8.8 galvanized
Type LM-BA: The LM-BA version anchors the element in the floor.
