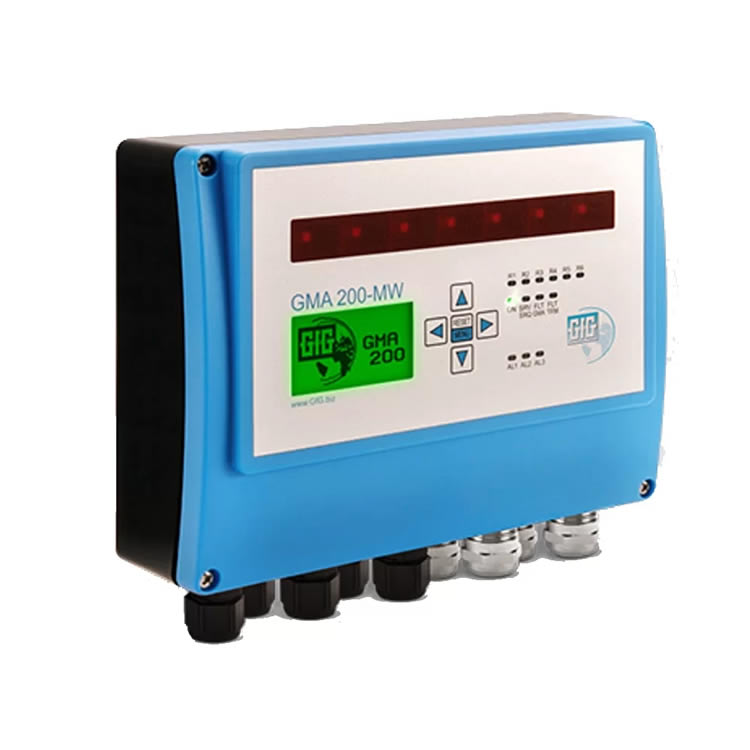

Reliable controller for gas detection systems in wall-mounted housing
Wherever gases are used or may be present in industrial and commercial applications, they must be monitored. A gas detection system consists of one or more transmitters which use sensors to detect gases and a controller which has a wide range of tasks. The GMA200-MW4 controller is ideally suited for complex gas detection systems with up to 16 transmitters (up to four of which can be analog). Safety measures can be connected directly to the GMA200-MW4 via internal relays. The display will indicate the current measured values as well as any alarms or special states of the transmitters.
Fixed transmitters monitor combustible or toxic gases and vapors present in the ambient air as well as the oxygen concentration. A controller displays the measured gas concentrations centrally and processes the incoming signals. The GMA200-MW4 is the right choice if
you need to monitor gases with up to 16 transmitters (up to 4 of which can be analog)
you want safety measures to be operated directly via the controller
the measured values need to be displayed centrally
an acoustic and visual alarm is required on site
you want the operating status and alarms to be indicated by status LEDs
Versatile application possibilities
The GMA200-MW4 controller and the connected transmitters form a fixed gas detection system for measuring toxic and flammable gases as well as the oxygen concentration. Up to 16 digital transmitters can communicate with the controller using the RS-485 interface. Analog transmitters (up to 4) can be connected on 0.2-1 mA or 4-20 mA lines. The GMA200-MW4 is suitable for all GfG transmitters and available gas types. This offers a large number of possible combinations of gases, measuring ranges, measuring points and Ex zones to be monitored simultaneously. The robust housing (IP65) for wall mounting can be installed in almost any location. The supply voltage is 100-230 V AC or 24 V DC.
Key features at a glance:
General information:
Suitable for every GfG transmitter
Monitors 1 to 16 measuring points
Features:
6 integrated relays for safety measures, fault notifications and maintenance (4 of which can be programmed freely)
0.2-1 mA, 4-20 mA or RS-485 (Modbus)
Color-backlit 2.2" display
13 colored status LEDs
Visual and audible alarm
Housing for wall mounting (IP65)
Optional:
Data logger (microSD card)
Relay module for expansion (up to 4 modules with 16 relays each)
Visualization software
Uninterruptible power supply
Approvals / Certifications:
ATEX certification: II (2) G
SIL 2/3
