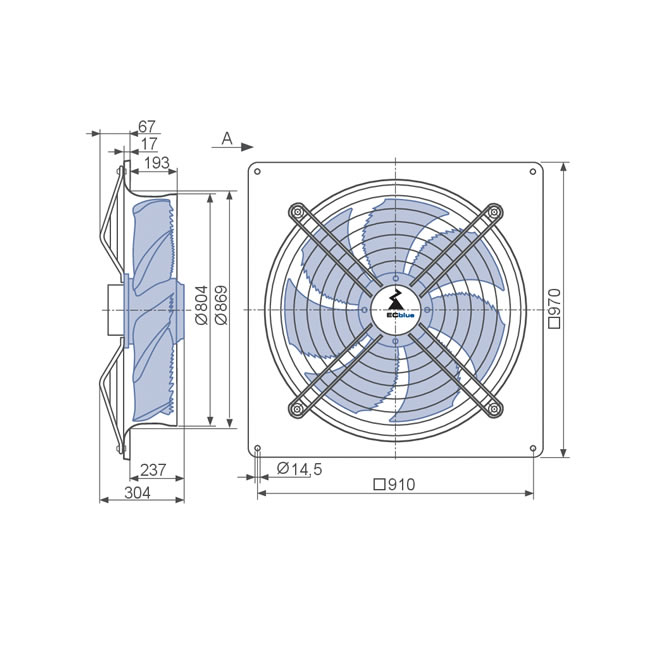

ZIEHL-ABEGG FN080-ZIQ.GL.A7P3 154815 wall mounted axial fan
FN080-ZIQ.GL.A7P3 is an axial fan designed for wall mounting. The compact fan FE2owlet combines high efficiency and low operating costs with very low noise thanks to its bionically shaped blades with protective coating. The fan is fully controllable and features an EC motor with ECblue technology with a built-in controller customized specifically for the fan. The FN080-ZIQ.GL.A7P3 wall fan has a high durability thanks to the dynamically balanced impeller.
| Speed [min-1] | 1100 |
|---|---|
| Air Flow Volume [m3/h] | 27261 |
| Duct diameter [mm] | 800 |
| Power Input [W] | 3100 |
| Voltage | 400V |
| Current [A] | 4.6 |
| Max. temperature [°C] | 65 |
| Protection IP | IP55 |
| Noise [dB(A)] | 86 |
FE2owlet is an axial industrial fan designed for engineering, automotive or system technology. The FE2owlet axial fan is available in wall and circular design. The fan features high efficiency with economical operation and minimal noise level.
The axial fan is equipped with bionic sickle-shaped blades made of composite material, which achieve optimal performance and noise parameters. Thanks to its compact dimensions, the fan is suitable for any installation situation. It complies with the current ErP directive and many other certifications such as VDE, CCC, UL or CE.
Impeller
The fan is equipped with a dynamically balanced impeller in two planes.
Motor
The fan is equipped with an EC motor with ECblue technology with integrated controller.
