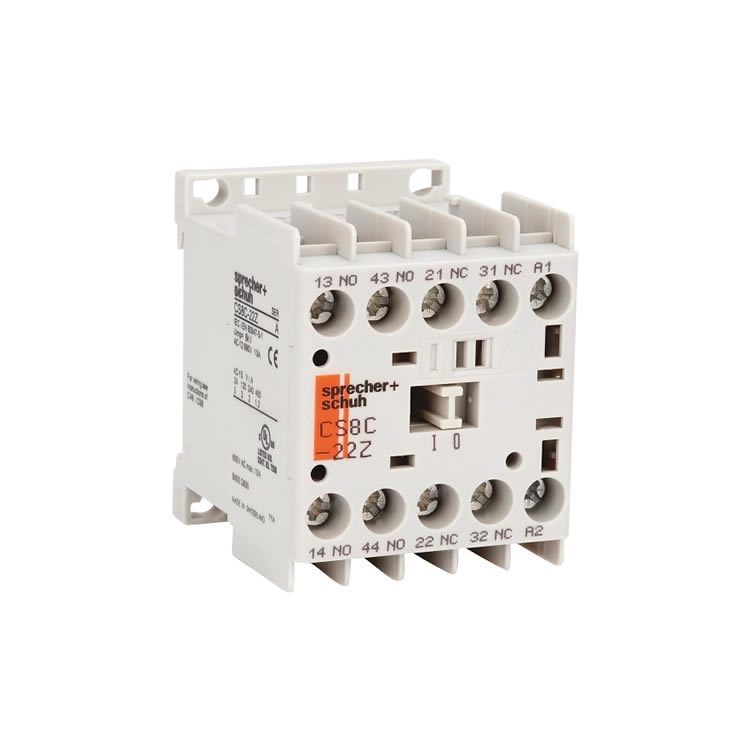

Sprecher+Schuh CS8C-22Z-220D Contactor
Product Overview
Type: Electromagnetic Contactor (Industrial Grade)
Application: Suitable for motor control, power distribution and automation systems, can frequently start and stop high-load equipment.
Key Parameters
Rated Current:
CS8C series usually covers 9A~150A, 22Z may indicate 22A rated current (subject to the manual).
Coil Voltage:
220D represents the coil control voltage is 220V DC (direct current), if it is AC, it will be marked as 220AC.
Number of Poles:
Standard 3-pole (3P), used for three-phase motor control.
Contact Configuration:
Main Contact: 3 groups of normally open (3NO)
Auxiliary Contact: Optional expansion module (such as 1NO+1NC).
Product Features
High durability: Mechanical life exceeds one million times, suitable for frequent operation.
Modular expansion: Auxiliary contacts, mechanical interlocks and other accessories can be added.
Wide Voltage Compatibility: The coil supports a variety of voltages (12V~600V AC/DC, subject to the model).
Safety certification: Complies with international standards such as IEC 60947-4-1.
Typical applications
Start/stop control of three-phase motors
Industrial pumps, fans, compressors and other equipment
Automated production lines and power distribution systems
