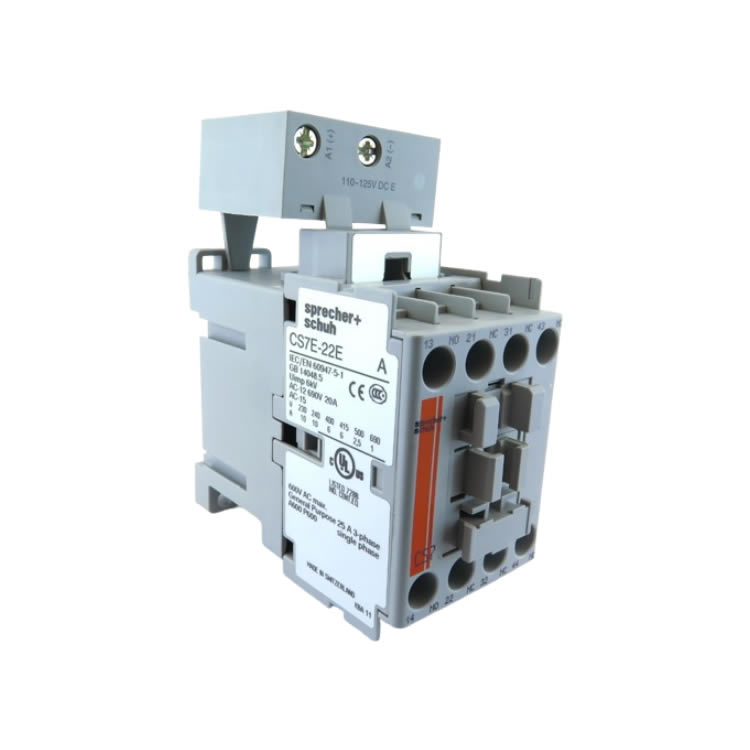

Sprecher+Schuh CS7E-22E-110E Control Relay
Product Overview
The Sprecher+Schuh CS7E-22E-110E is a compact electromagnetic control relay from the CS7E series designed for industrial control and automation applications. The relay features a modular design, provides reliable switching functionality, and is suitable for a variety of control circuits.
Core features
1. Electrical parameters
Coil voltage: 110V AC (50/60Hz)
Contact configuration: 2 sets of changeover contacts (2CO)
Contact capacity:
10A @ 250V AC (resistive load)
6A @ 30V DC
Insulation voltage: 2000V AC
2. Mechanical characteristics
Compact design: width only 22.5mm
Mounting method: standard 35mm DIN rail mounting
Mechanical life: 10,000,000 operations
Electrical life: 100,000 operations (rated load)
3. Functional features
Modular design: expandable auxiliary contacts
LED status indication (optional model)
Manual operation button (optional model)
4. Environmental adaptability
Operating temperature range: -40°C to +70°C
Protection level: IP20 (installed in control cabinet)
